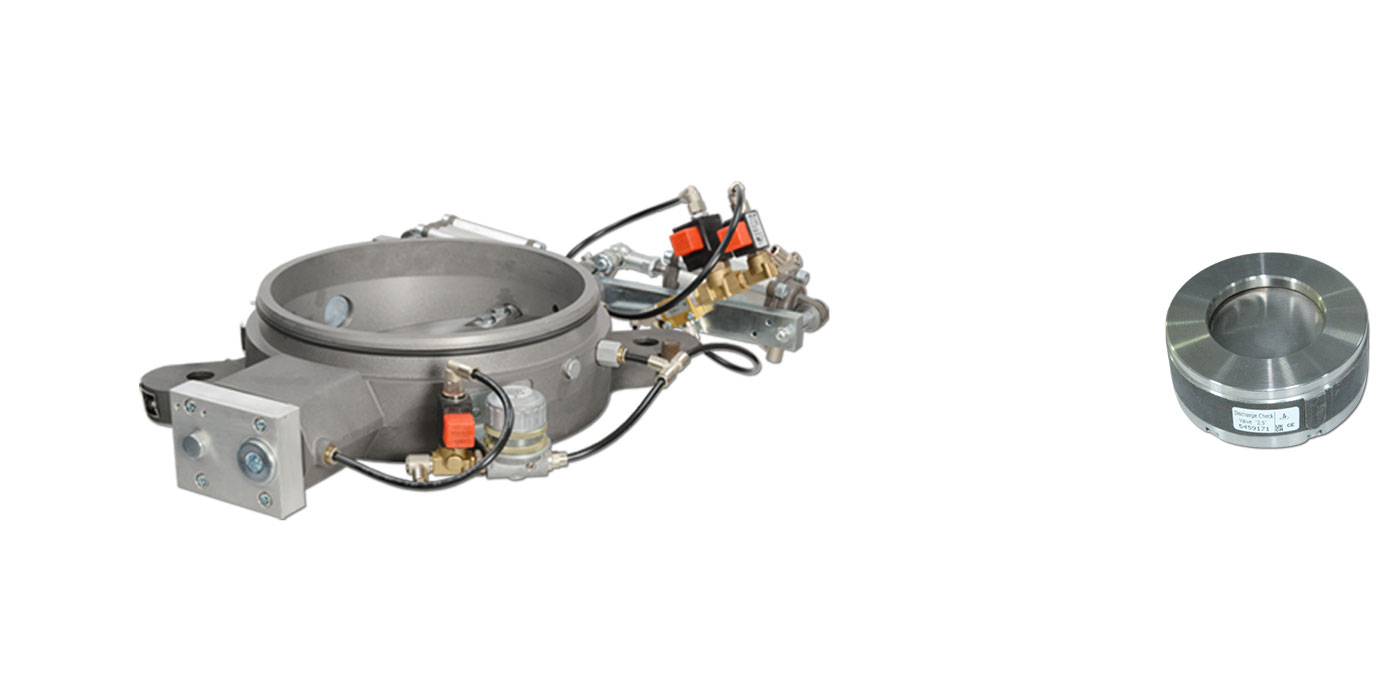

Air Circuit
for oil free screw compressors
Compressor capacity must be regulated whenever it exceeds current demand. HOERBIGER suction control valves regulate compressor suction volume and close the suction duct during off-loading and shutdown. Airflow is straight through the valve so that flow resistance is very low.

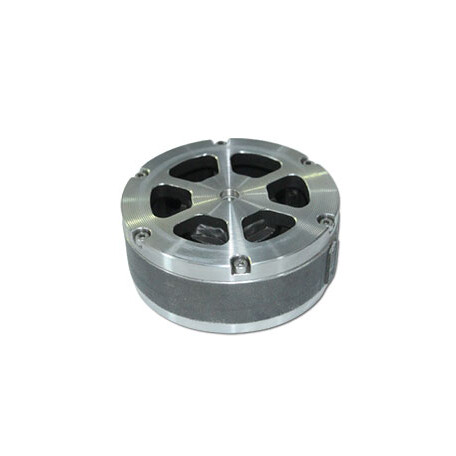

HOERBIGER A-type check valve in discharge line to stop backflow when compressor is off.
Intake regulation, on/off with direct linked venting

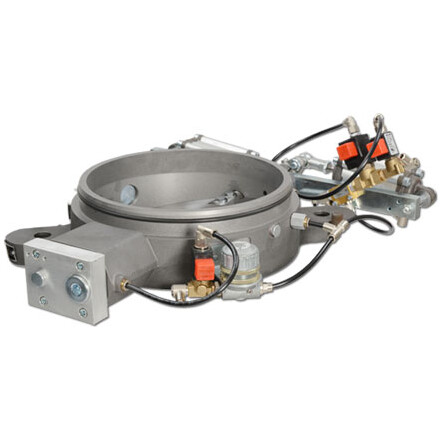

Disc type control (DK):
Straight through flow valve with butterfly type control disc
- Volume air flow:
- 8 to 140 Nm3/min I 280 to 5000 scfm
- Maximum working pressure:
- Atmosphere
- Temperature:
- -20 to +120 °C I-4 to +248 °F
- Pressure drop:
- 0.002 to 0.02 barg I 0.029 to 0.29 psig
Ensures one way flow for the air
All components corrosion free/protected
- Maximum working pressure:
- Standard 16 barg I 232 psig
- Ambient temperature:
- 5 to 80 °C I 41 to 176 °F
- Nominal diameter:
- 50 to 150 mm I 2 to 6 in
Further products available on request
Please contact us via air-industrial@hoerbiger.com
