Discharge control
for water injected screw compressors
Discharge control components ensure that the minimum water flow required for cooling and lubricating the compressor is maintained during start-up and off-load and when the user lines are fully open. Optional combination with filtrations possible.
Ensure the water flow by keeping a minimum pressure level in the compressor. The integrated check valve prevents back flow from air-net during stop and idling.
MPVL:
Functional tube connector/ Component of the pressure line after water separation
MPVL ETS:
Allows integration into customer components (e.g. separator tank, air cooler)
All components corrosion free/protected.
- Volume air flow:
- MPVL: 0.6 to 200 Nm3/min I 22 to 7100 scfm
MPVL ETS: Depends on customer Housing - Maximum working pressure:
- Standard 16 barg I 232 psig
High pressure 40 barg I 580 psig on demand - Ambient temperature:
- 5 to 80 °C I 41 to 176 °F
- Inlet/outlet connections:
- Threaded or flanged

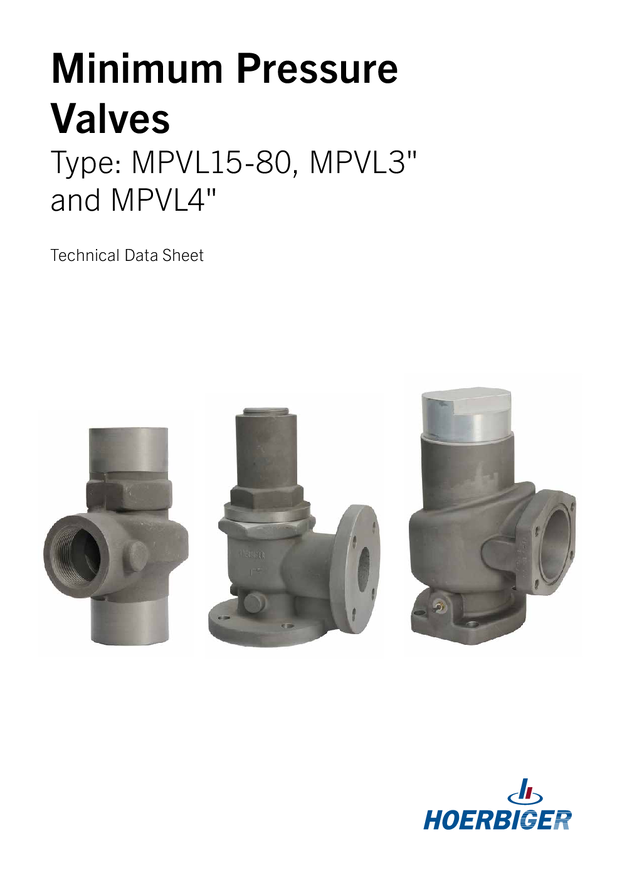

Type: MPVL15-80, MPVL3" and MPVL4"
Combination of minimum pressure valve and air/water separator.
All components corrosion free/protected.
- Volume air flow:
- 5 to 26 Nm3/min I 205 to 920 scfm
- Maximum working pressure:
- 16 barg I 232 psig
- Ambient temperature:
- 5 to 80 °C I 41 to 176 °F
