Oil circuit
for oil free screw compressors
Valves to regulate the oil flow needed for lubrication of bearing and gear box to ensure a safe working condition of an oil free screw compressor.
Regulation of the oil temperature in the designed range by varying the oil flow through the oil cooler

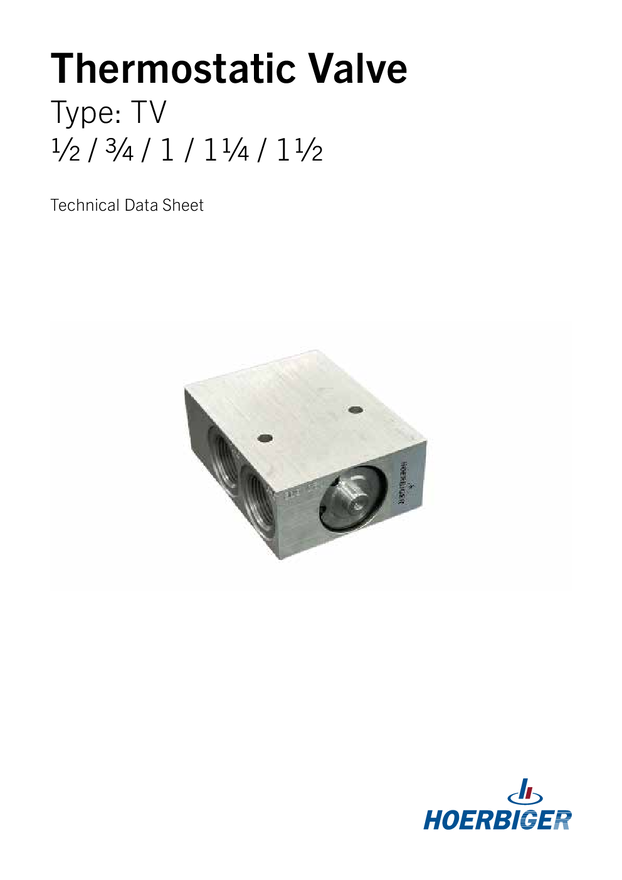

TV:
Pure thermostatic valve with regulation function only

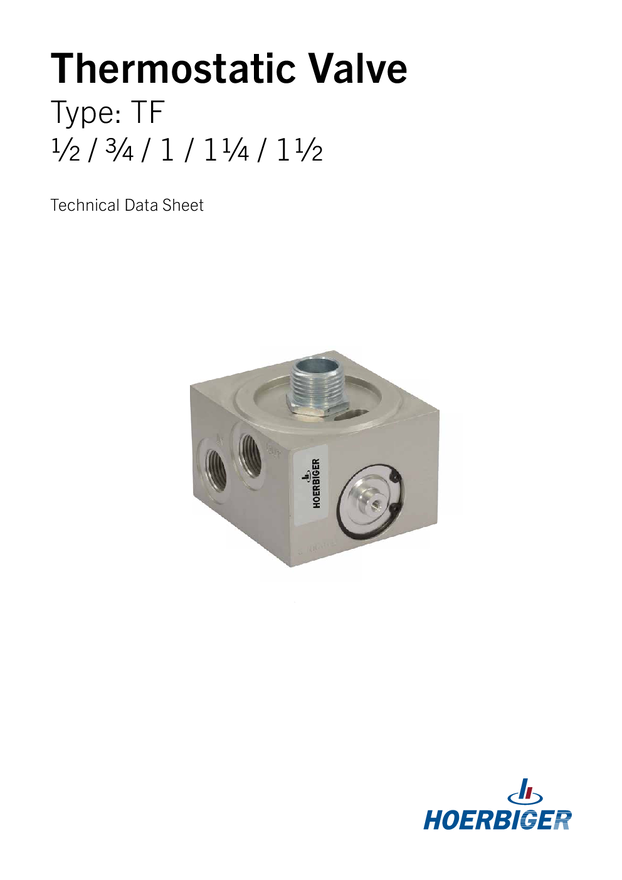

TF:
Regulation of oil temperature with additional oil filtration using a spin-on filter
- Maximum working pressure:
- 16 barg I 232 psig
- Ambient temperature:
- -20 to +120 °C I -4 to +248 °F
- Thermostat setting:
- 55 to 70 °C I 131 to 158 °F
70 to 85 °C I 158 to 185 °F
71 to 80 °C I 160 to 176 °F
73 to 88 °C I 163 to 190 °F - Oil flow:
- 45 to 400 l/min I 12 to 106 gal/min
- Port size:
- ½ to 1 ½ in
Technical Data Sheet
Technical Data Sheet
Further products available on request
Please contact us via air-industrial@hoerbiger.com
