CS – Plate Valve
The robust all-rounder for low to medium pressure applications
Proven design with customized features
The CS – Plate Valve is a plate type valve for low to medium pressure applications. Thanks to its non-metallic valve plate made of impact-resistant polymer, the CS – Plate Valve is a robust all-rounder for a wide range of applications, such as in Chemical, Petrochemical, Technical Gases and hydrogen production by electrolyzers. The optionally available high-performance polymer material HP developed by HOERBIGER also enables the CS – Plate Valve to be used in cryogenic applications such as LNG boil-off. Widely designed flow channels and conically milled seats and guards offer high tolerance against clogging. Tribological optimization for lubrication-free operation and hydrogen-compatible materials provide safe operation in H2 compression systems.
Thanks to the simple but robust design with only one moving sealing element, CS – Plate Valves ensure easy and cost-effective maintenance and high durability.
- Proven Design
- Superior Performance
- Reliable & Durable
- Easy Maintenance
- Main application:
- Chemical, Petrochemical, Technical gases, Hydrogen
- Compressor speed:
- 800 rpm maximum
- Lubrication:
- lube and non-lube
- Maximum discharge pressure:
- 60 bara
- Maximum suction pressure:
- 1 bara
- Temperature range:
- -40°C to 230°C (PEEK)
-50°C to 160°C (PA)
-160°C to 230°C (HP) - Mol weight:
- 2 - 50 g/mol
- Valve type diameter:
- 67 mm - 310 mm
CS – Plate Valve ensures superior performance
The CS valve has proven its reliability and durability in more than 1000 process gas applications worldwide.

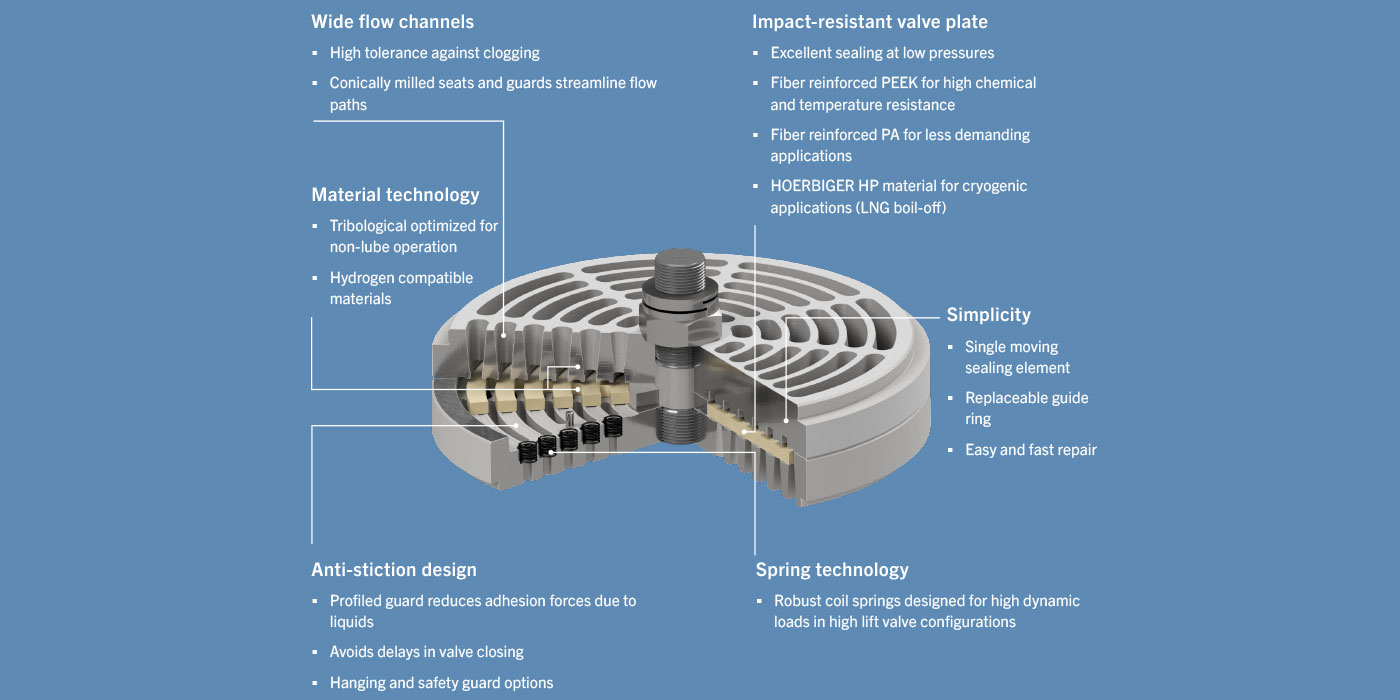

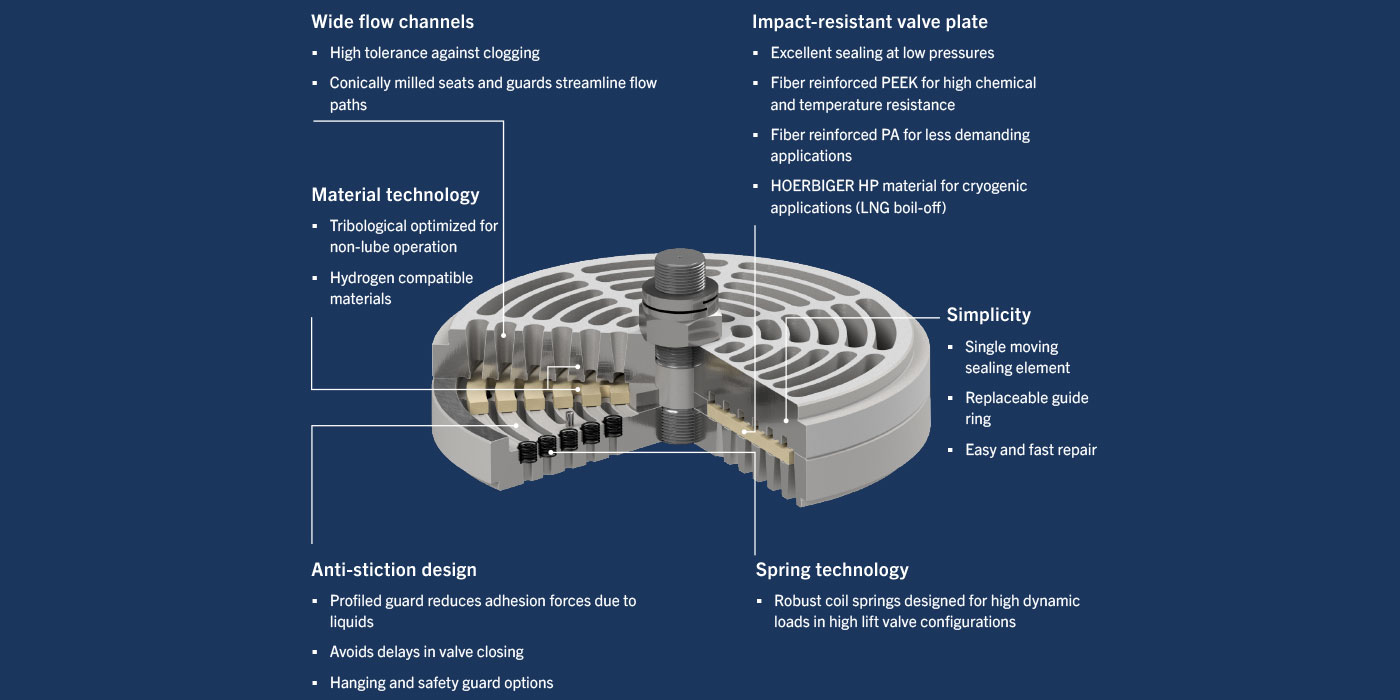

Benefits at a glance
- Fibre reinforced polymer valve plate
- Tribologically optimized
- Wide flow channels
- Conically milled seats and guards
- Many times higher impact resistance than steel
- Suitable for lube and non-lube compression
- High tolerance against clogging
- Single moving sealing element
- Simple assembly
Easy and fast repair
Valve seat/plate sealing lands optimized for low pressures
Minimized leakages
- Designed for high dynamic loads in high lift valve configurations
- Reduces adhesion forces due to liquids
Avoids delays in valve closing
Minimized leakages
Resistance to hydrogen embrittlement
Easy and fast repair
